INTEGRATED LIBRARY WITH MORE THAN 1000 TRACKS
It allows immediate use thanks to the integrated library of more than 1000 tracks with interludes, among which the device automatically recognizes the current one. In the rare case that your track is not included in the library,
The SAFD-2 (Starlane Automatic Finish Line Detection) function will automatically split the track after the first 2 laps, allowing you to see your times and splits, right from the first session, without intervening on the laptimer.

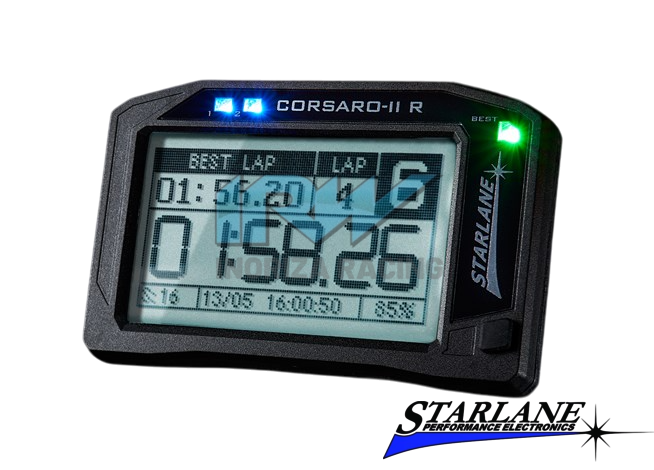

THE LIGHTEST AND MOST COMPACT
Weighing just 95 grams, it is the lightest device for a kart steering wheel. The use of the touch screen has also made it possible to limit the dimensions, while maintaining maximum readability of the screen.
WID-D MINIATURIZED WIRELESS MODULE
The WID-D wireless module is included as standard in the Corsaro-II R Kart-Scooter package, it is equipped with an internal rechargeable battery that allows up to 7 days of autonomy on the track.
The package also includes the water temperature sensor, RPM cable and aluminum sleeve to mount the temperature sensor to the radiator hose.
TICKETS AVAILABLE AT THE MODULE
-Water temperature
-Thermocouple K for exhaust temperature
-Engine RPM
-Analog input 0-5 V (TPS or handwheel)
-Wheel speed
You can see the tilt angle degrees on the specific display page
indicating the current angle and the maximum degrees reached at the last right and left corners.
The screen also displays the maximum degrees reached in the session.
differentiated between right and left corners.
WID-C MINIATURIZED WIRELESS MODULE AS AN OPTION
(WC3A code)
Tickets available:
- 3 Generic Analog for connecting sensors with 0-5V analog output such as: linear potentiometric suspension sensors with codes: SSLIN075M8, SSLIN150M8, SSLIN075PROM8, SSLIN150PROM8 or brake pressure sensor with code SSPBK60M8.
- CAN BUS line for compatible vehicles and for RID Starlane modules.
- Power supply: 12V from vehicle.
- Dimensions: 60mm x 44mm x 21mm.
OPTIONAL RID-LAMBDA MODULE
(RID2RLT code)
It comes with BOSCH LSU4 wideband Lambda sensor and, via the supplied transmitter, transmits to CORSARO the values of air/fuel ratio, engine RPM and throttle position to achieve the best mapping for your engine management system.
